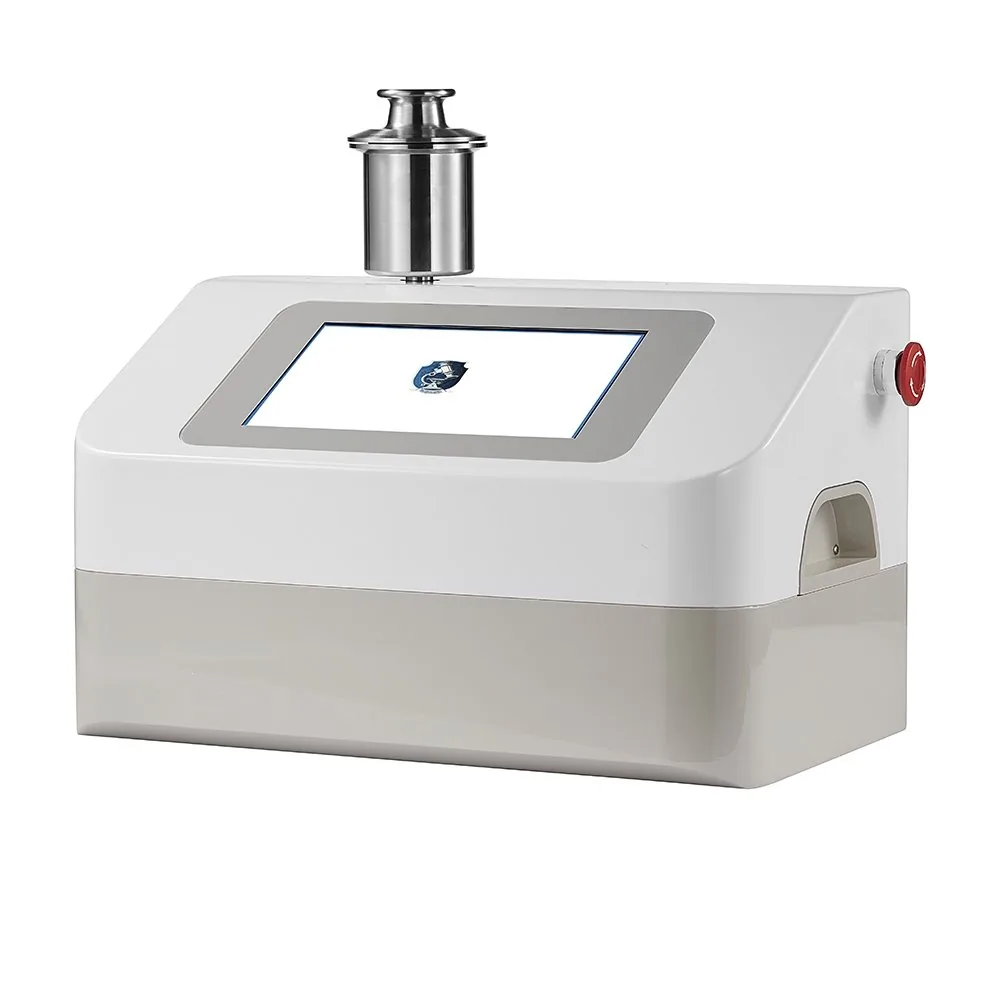

MFT-600 Package Leak Tester
The MFT-600 is a semi-automatic, non-destructive package leak tester using the vacuum attenuation (vacuum decay) method.
- 2 μm
- 0.00057 sccm
- Vacuum attenuation method
Key features
- Semi-automatic detection, suitable for small batches and multiple product varieties
- Non-destructive testing with high accuracy, repeatability and sensitivity
- Vacuum pressure difference detection
- Leak rate is automatically converted into defect aperture (μm)
- Test results stored in a database for quality management
- Touch interface: after selecting the test program, the operator only loads and removes the sample
MFT-600 specifications
Method and sensitivity
- Measurement method
- Vacuum attenuation method
- Minimum detectable aperture
- 2 μm
- Differential pressure sensor
- -2 to 2 kPa, error ≤ 0.5% F.S.
- Differential pressure resolution
- 0.1 Pa / 0.01 Pa
- Test sensitivity
- 0.00057 sccm
- Pressure test range
- -0.1 to 0.2 MPa; -0.1 to 0.7 MPa; -0.1 to 1.0 MPa
Data and output
- Historical records
- ≥ 5 years
- Audit trail
- ≥ 5 years storage; event logs can be queried by time
- Export data
- USB
- Print function
- Built-in needle printer
- Signal output
- 4-20 mA, RS485, 12 V alarm output
- Communication interface
- Ethernet, USB, RS485
Hardware
- Weight
- 19 kg
- Power supply
- 100-240 VAC, 50-60 Hz
Compliance statements
- Documented by MedIntegrity to comply with USP <1207> and ASTM F2338 standards.
Applies to this model only. Request supporting documentation for your validation.
